Myron L® Hydroponics Instruments:
The nutrient solution and its management are the foundation of a successful hydroponics system. The function of a hydroponics nutrient solution is to supply the plant roots with water, oxygen and essential mineral elements in soluble form.
A test of the Total Dissolved Solids (TDS) using the DS Meter or pDS Meter or continuous monitoring with the HYDRO-STIK gives the grower accurate measurements of the concentration of nutrients in solution. If the concentration drops below the optimum level required to sustain and grow the plants, add more nutrient rich solution until the desired concentration level is achieved. This prevents haphazard dosing and wasted solution, which minimizes costs to the grower.
pH of the nutrient solution is also critical to successful plant growth. All elements have a specific solubility pH range. This means that mineral elements dissolve and can become more concentrated in solution within certain pH ranges. Roots absorb only the dissolved nutrients, so this is critical to plant growth. The TH1H and the pDS Meter quickly and easily measure pH.
Monitoring the addition of a pH balancing solution with the TH1H or the pDS Meter lets the grower precisely adjust the pH level. Beyond affecting nutrient availability, extremely low or high pH can even damage or kill plants.
All Myron L TDS and pH instruments give lab accurate results in the field.
All Myron L instruments use advanced Temperature Compensation (TC) circuitry and equations to give you the best TC correction available.
| Model: | TechPro II™ TH1H |
| Range: | 0-14 pH |
| Display: | 4 Digit Liquid Crystal Display |
| Dimensions: | 196 x 68 x 64 mm /
7.7 x 2.7 x 2.5 in. |
| Weight: | 320 g /11.2 oz. |
| Case/Cell Material: | ABS |
| pH Sensor Well Capacity: | 1.2 ml/0.04 oz |
| Power: | 9V alkaline battery |
| Battery Life: | >100 hours (5000 readings) |
| Operating/storage Temperature: | 0 – 55°C/32 – 132°F |
| Protection Ratings: | IP67/NEMA 6 WATERPROOF |
| Accuracy: pH
Temperature |
±0.01 pH units
±0.1ºC/F |

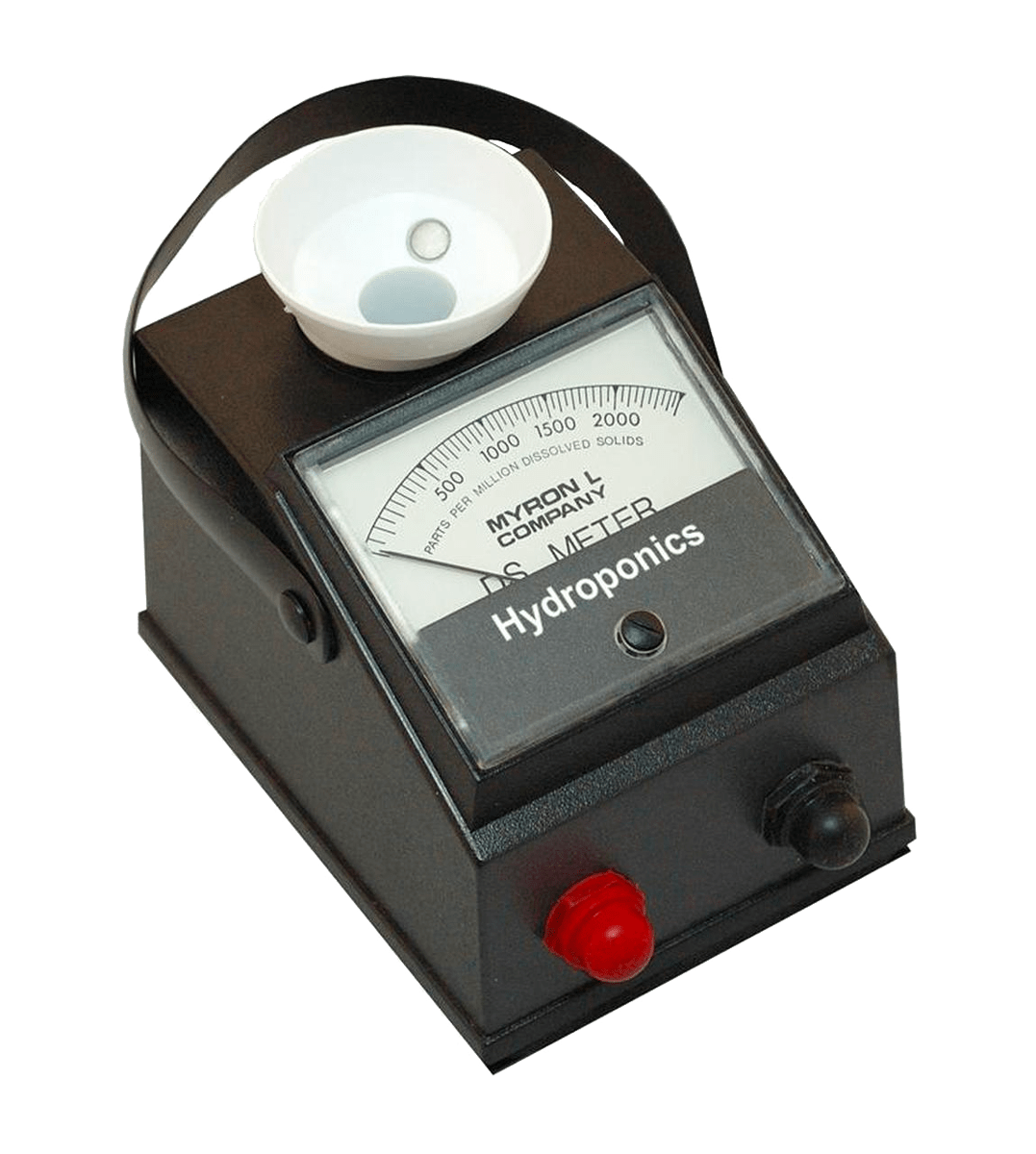

| Models: | DS Meter™ 512T4H
pDS Meter™ T6/PHH |
| Ranges: ppm
pH |
0-2500 ppm/TDS
0-5000 ppm/TDS; 2-12 pH |
| Readout: | 2 1/2: taut-band shock resistant meter |
| Units of Measure: | parts per million (ppm)/TDS |
| Accuracy: TDS
pH |
±2% full scale
±0.2 pH units |
| Repeatability: | ±1% |
| Temperature
Compensation: |
Automatic to 25°C/77°F for TDS samples between 50° – 160°F/10 – 71°C |
| Calibration Controls: | TDS
pH Zero and pH Gain |
| Electrodes (built-in): | Conductivity: Never need replatinizing
pH: KCl gel-filled, field replaceable |
| Cell Cup: | Chip and crack resistant, polyethylene |
| Circuitry: | Very stable; requires minimal recalibration |
| Power: | 9 volt battery supplied; good for 2000 test/
1 year |
| Dimensions: | 3.4 W x 4.5 D x 4.0 H in./
86 x 114 x 102 mm |
| Weight: | 0,45 kg / 1 lb. |
Founded in 1957, the Myron L® Company is one of the leading manufacturers of water quality management instruments in the world.
